Now driving all three phases with an improved circuit design considering Rds(on), gate capacitance, bootstrap component values, and timing. I used an Analog Discovery 2 to drive the gates and analyze the phase waveforms.

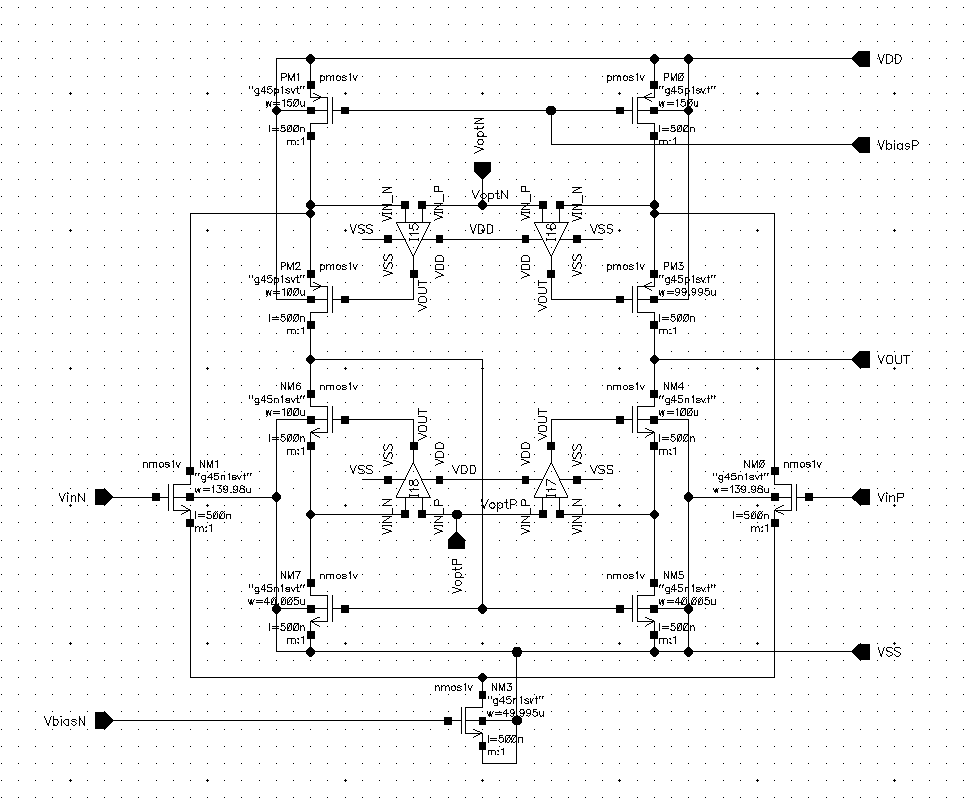

A folded cascode design implementing "baby" op-amps for gain boosting, designed in Cadence Virtuoso with a teammate as the final project for Analog Electronics (ECE511) at NC State University.

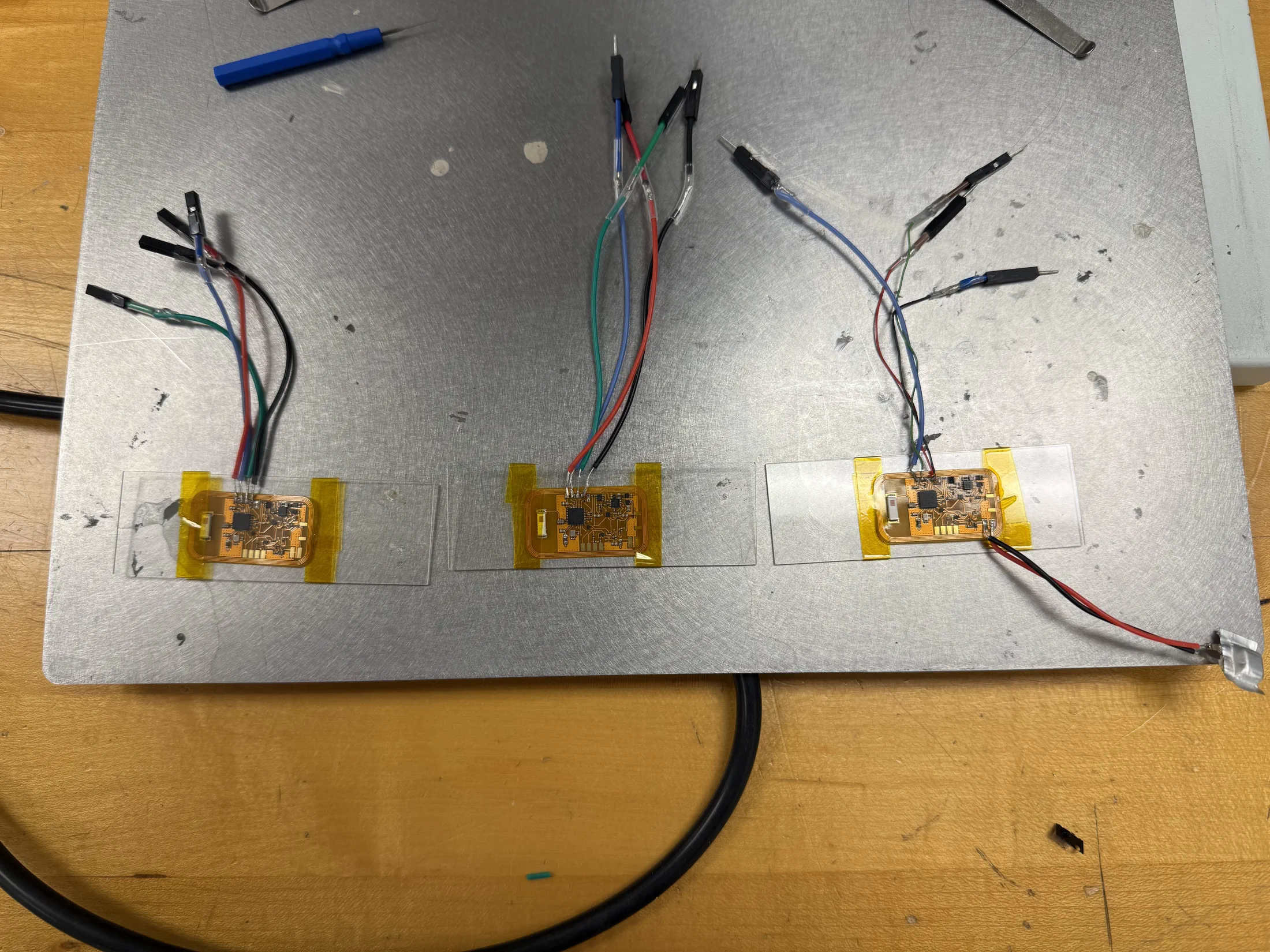

As part of my work in the Vasquez Research Group at NC State University, I developed my microsoldering skills and achieved multiple working boards using 0201-size components.
Working in the research lab on tuning capacitor values to achieve optimal tuning for RF wireless charging circuitry.
The smart tourniquet near completion: the pump tightens until a pulse oximeter detects occlusion, then maintains pressure within a margin and uses PID control to reduce pressure back toward minimal occlusion pressure while keeping the limb occluded.

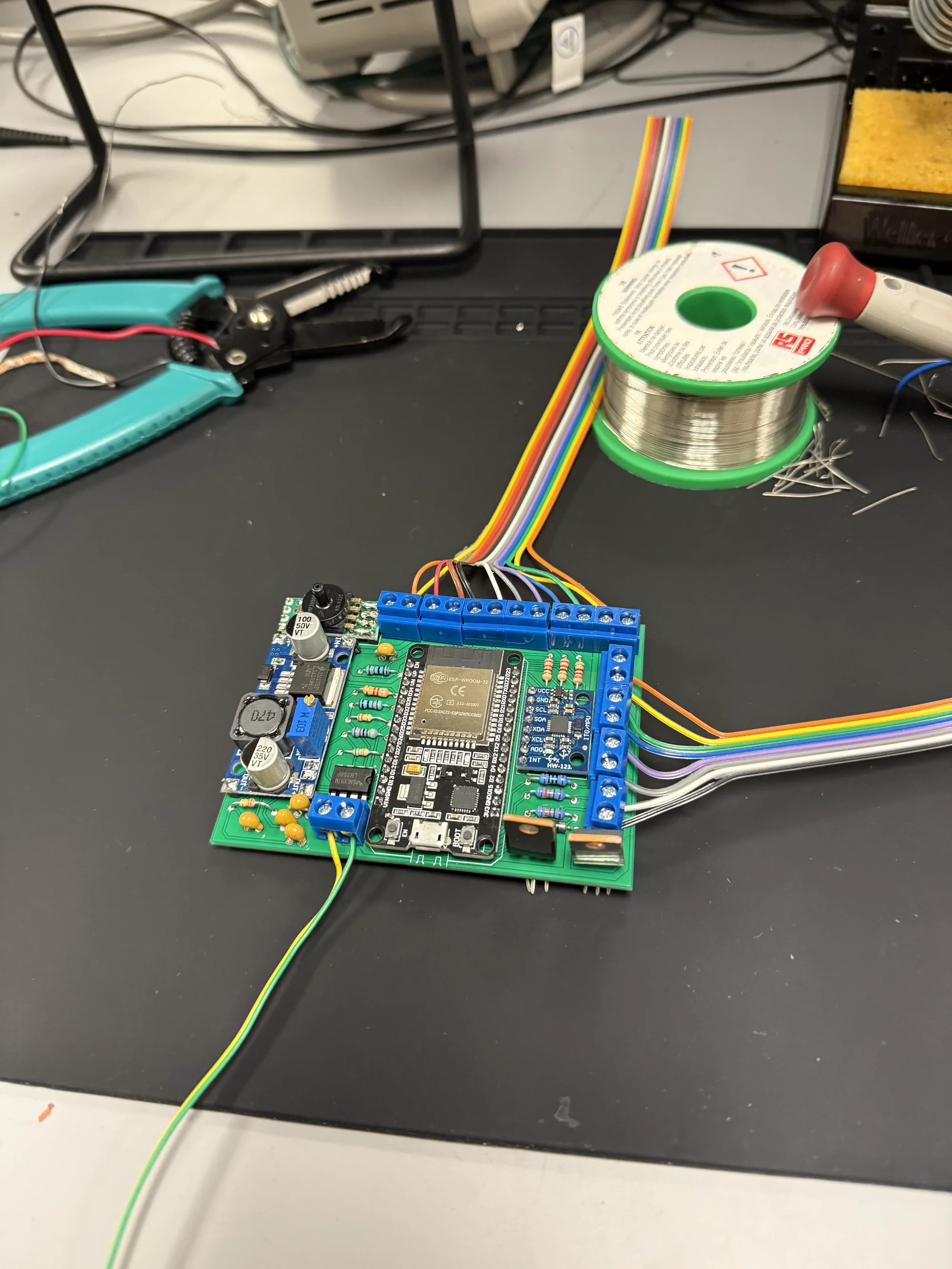

As part of a biomedical instrumentation class project (ECE 522), a partner and I developed and constructed a smart tourniquet system with the goal of achieving minimum blood occlusion pressure to prevent tourniquet related nerve injuries (TRNI). It was voted best class project.
In this video I am wearing a VR headset and calculating finger angle and position in Unity, then sending that data over Bluetooth to an ESP32 to control a servo.
Using an improved hall effect glove that can track multiple finger joints and a joint kinematics algorithm with matplotlib in Python to visualize the finger in 2D.
Using the hall effect sensor glove to control a servo.
The latest Synth Aesthetic version, with small software improvements and a stronger focus on aesthetics. I used white PLA to 3D print an enclosure and pushed the visualization toward 2.5D.
Using a custom sleeve to compress the electrodes on my forearm, advanced filtering, and real-time control techniques, I achieved responsive finger control using EMG signals.
Archive view
Scroll the full media history from early builds to current work.
Quad Hecate will be my flagship project joining embedded systems, power, controls, circuit design, and more.
